| Platform | |
| Processor | 1 x Intel Xeon Scalable Gen.5 Processor (Emerald Rapids) |
| Chipset | Intel C741 PCH (Emmitsburg) |
| System Memory | 8 x DDR5 ECC 5600MHz RDIMMs |
| Expansion | Up to 2x Standard NIC slot (1x Half-Height Half-Length, 1x Full-Height Half-Length, both are PCIe x16) |
| Storage Device | Up to 1x Swappable U.2/SATA SSD (PCIex4) slot |

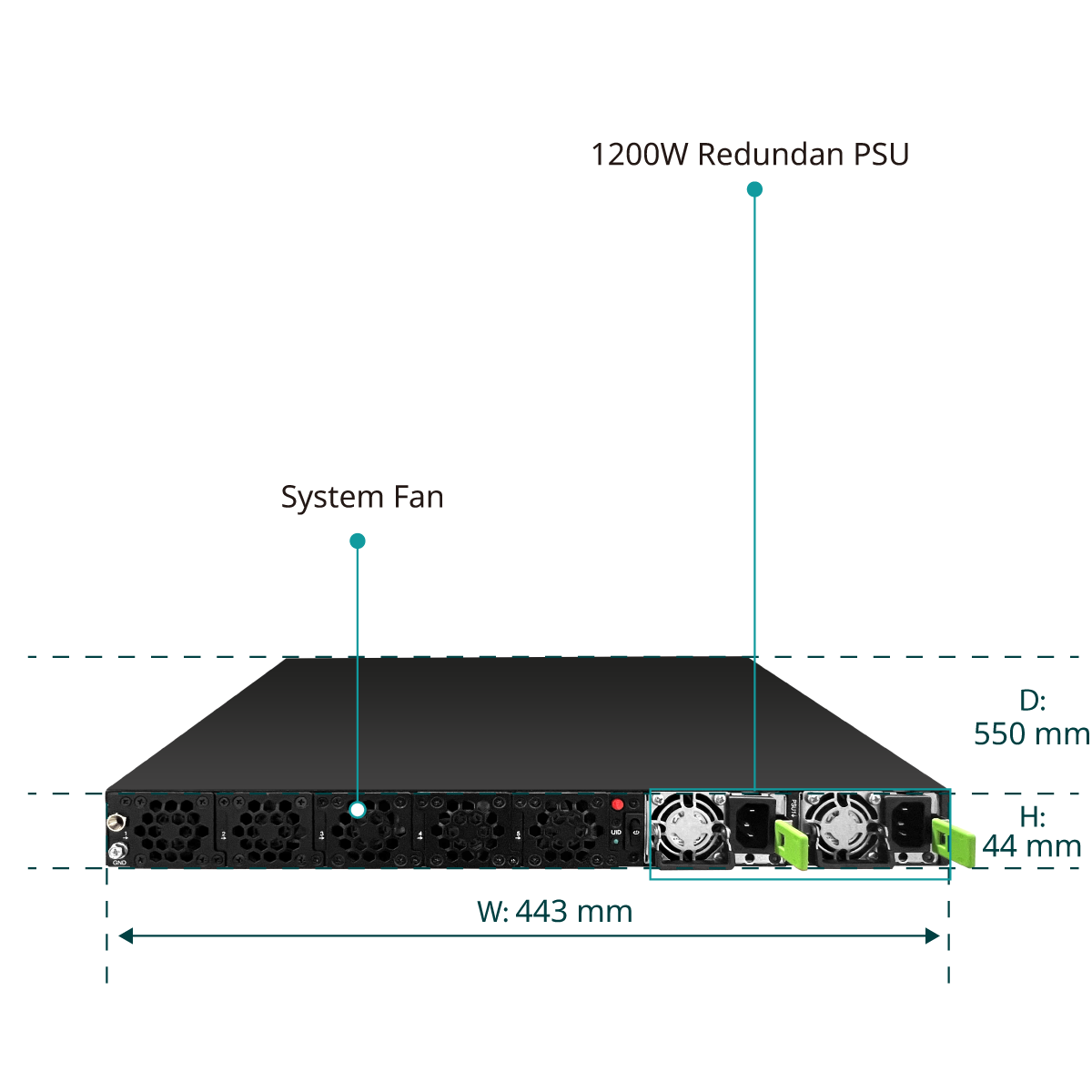

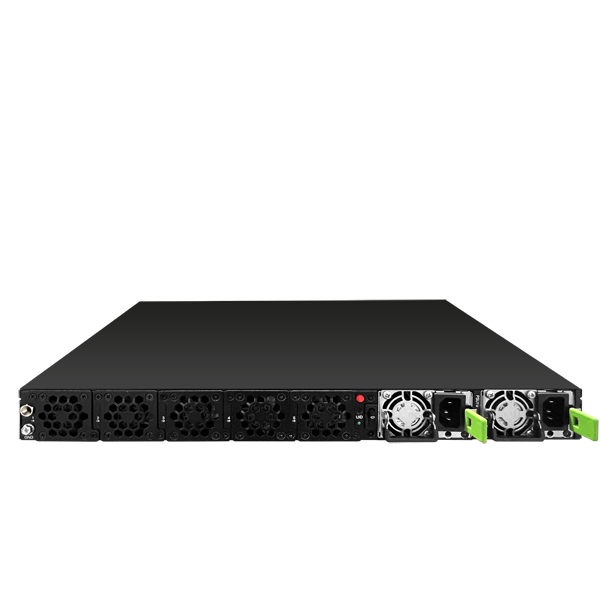

| Power Supply | 1200W Redundant PSU |
| Dimension (WxDxH) | 443mm x 550mm x 44mm (17.72" x 22" x 1.76") |
| I/O | |

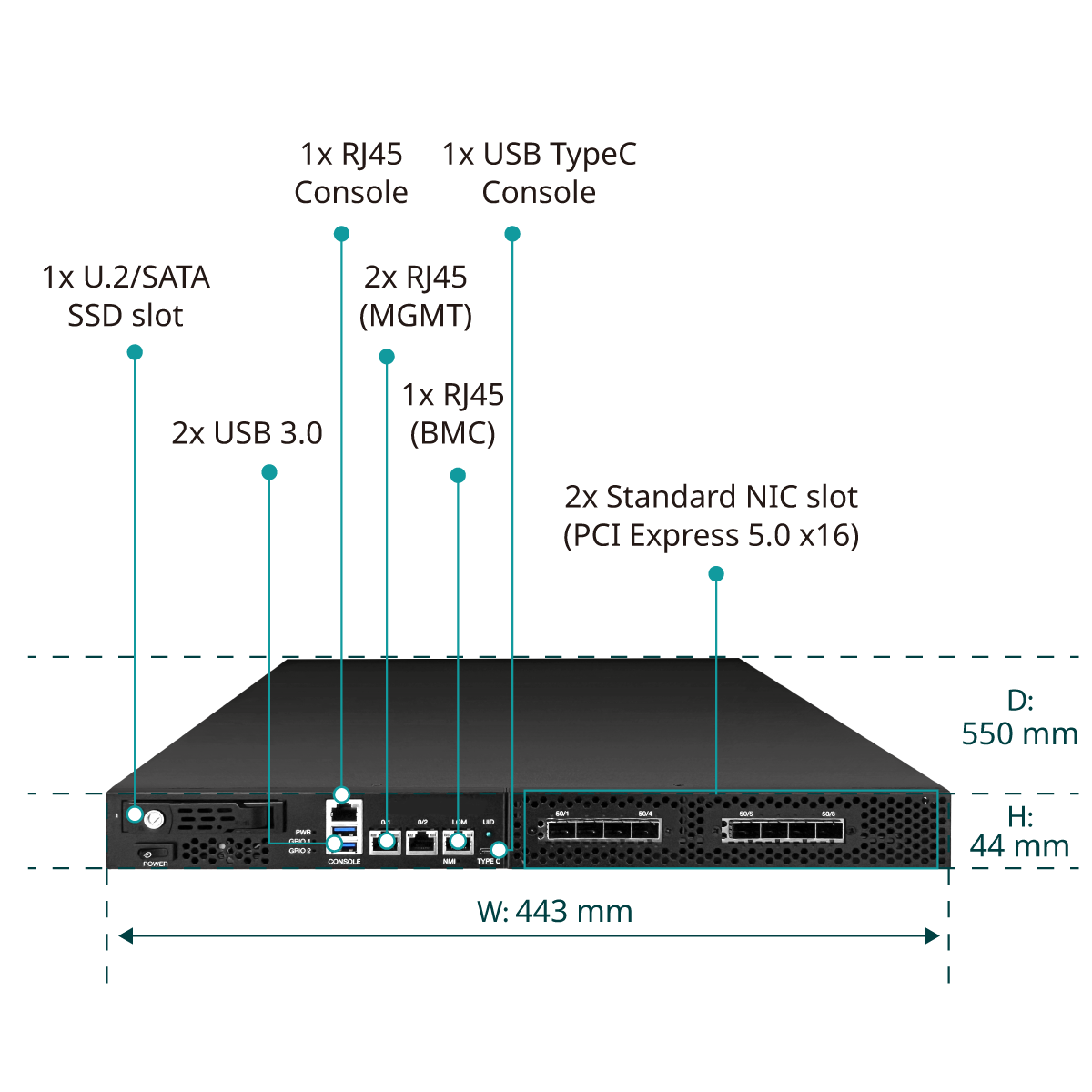

| Management Console | 1 x RJ45 System Console Port 1 x Type C Console Port 1 x RJ45 GbE Port (BMC) 2 x RJ45 GbE Port (MGMT) |
| USB Port | 2 x USB 3.0 Port(s) |
| Display Output | 1 x VGA Port (Optional from LOM or VGA module) |
| LED | Power / Ethernet / UID |
| Operation & Certifications | |
| Operating Environment | Temperature: 0 - 40°C (32 - 104°F) Humidity: 20 - 90% RH |
| Storage Environment | Temperature: -10 - 70°C (14 - 158°F) Humidity: 5 - 95% RH |
| OS Support | Linux |

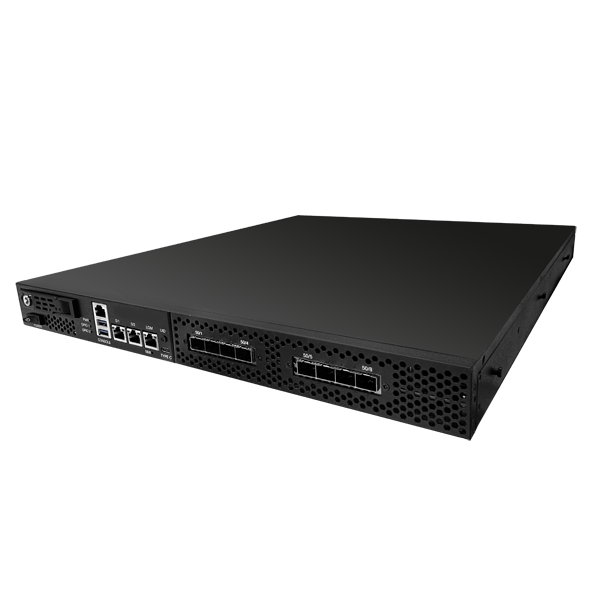

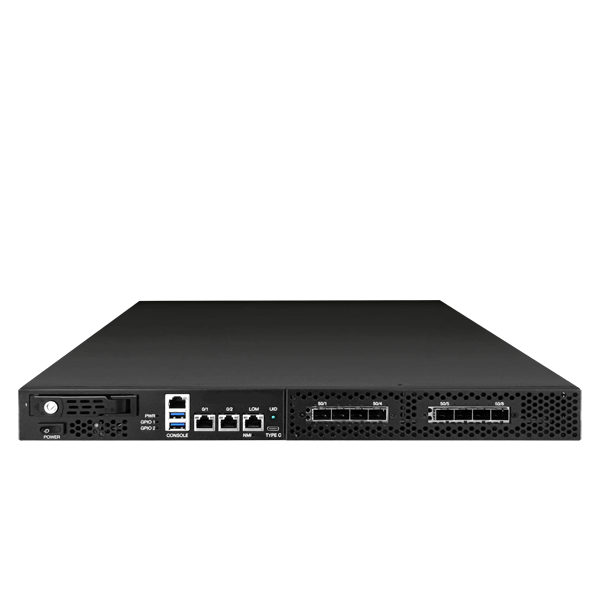

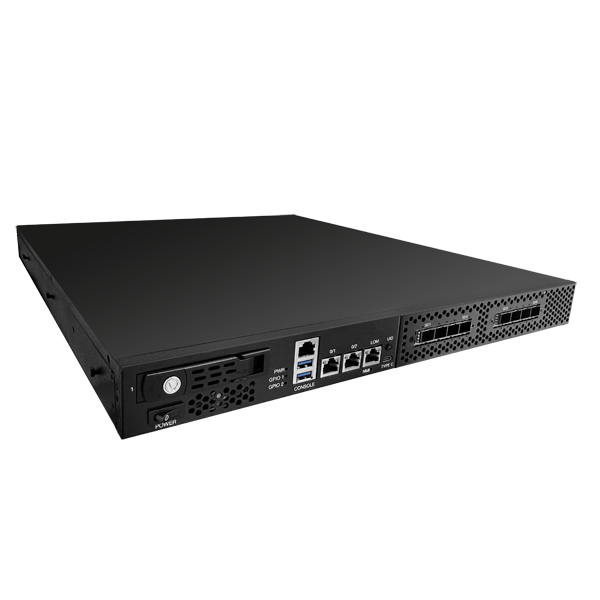

CAR-6041
1U system based on Intel Emerald Rapids for Networking and Cybersecurity Solutions at the Edge1U Network Appliance, NFV Servers
- 1x Intel Xeon Emerald Rapids Processor
- 8x DDR5 RDIMM memory, up to 5600 MHz (1DPC)
- 1x Swappable U.2/SATA SSDs (PCIe x4)
- Common Redundant PSU (CRPS, up to 1200 Watt)
- 2x Standard NIC slot (1x Half-Height Half-Length, 1x Full-Height Half-Length, both are PCIe x16)
