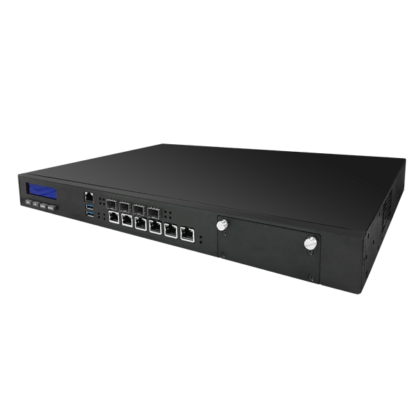

CAR-2080

Intel Coffee Lake (Refresh) 1U Appliance, support up to 18 GbE Ports

  • Intel Coffee Lake / Coffee Lake Refresh Processor
  • 1 x front-access CASwell NIC Module
  • 2 x DDR4 2666MHz UDIMMs up to 64GB
  • 2 x USB 3.0, 1x RJ45 Console
  • 2 x Segment Bypass 3.0
  • 6 x GbE RJ45 Ports (6x Intel i210-AT, co-layout with i211-AT)

The highly configurable CASwell CAR-2080 offers up to 18 Gigabit Ethernet ports for network security and unified threat management (UTM). This compact 1U rackmount device is available with both regular RJ-45 GbE ports and high-speed SFP connections through an optional PCI Express daughter board and CASwell’s proprietary network module.

Besides traditional network security applications such as firewall, VPN, IDS/IPS, anti-spam, anti-virus, UTM and WAN, the CASwell CAR-2080 is also targeting software defined networking (SDN) and network function virtualization (NFV) applications as well as network management applications such as Virtualized Data Center, ADC, QoS, server load balancer, wireless controller, and industrial automation control via Ethernet TCP/IP.

The CASwell CAR-2080 uses the well established Intel Core 8th and 9th generation processsors but also supports Pentium and Celeron models of this generation (Coffee Lake and Coffee Lake Refresh). The CPU can be paired with up to 64 Gigabyte ECC DDR4-2666 main memory on two DIMM slots, Customers can choose between two different CAR-2080 SKUs with either Intel H310 or Intel C246 chipset. Both models include six Gigabit Ethernet RJ-45 ports onboard and up to eight more network ports with the optional CASwell NIP module or a standard PCIe NIC but the C246 SKU addionally supports four extra SFP or GbE RJ-45 ports with an optional integrated daugher board. Both the CASwell NIP and the daughter board are connected to the main system by high-speed PCI Express 3.0.

Like it’s predecessor, the widely adopted CAR-2070, the CASwell CAR-2080 offers front I/O flexibility and multi-function design. Besides the many different networking configurations, customers are able to select various combinations of 2.5″ HDDs or SSDs over SATA 3.0 and M.2 connections, copper and fiber media, GbE/10GbE/40GbE/100GbE and one LC display module with function buttons.

Platform
Processor1 x Intel Core i7/i5/i3, Pentium, Celeron Processor (Coffee Lake/Coffee Lake Refresh)
ChipsetIntel C246 PCH (Coffee Lake)
System Memory2 x DDR4 ECC 2666MHz UDIMMs (Up to 64GB)
Ethernet Port6 x RJ45 GbE Port(s) on board
4 x SFP GbE Port(s) on board
Up to 18 x Ethernet Port(s) with maximum 90GbE bandwidth
Bypass2 segment(s) on board
ExpansionUp to 1 PCIe Gen3 x 8 for CASwell NIC Module
Up to 1 PCIe Gen3 x 4 for upper daughter board
Storage Device3 x SATA 3.0 HDDs
1 x M.2 B Key (SATA 3.0)
Power Supply150W Single PSU
Dimension (WxDxH)438mm x 292mm x 44mm (17.52" x 11.68" x 1.76")
I/O
Management Console1 x RJ45 System Console Port
USB Port2 x USB 3.0 Port(s)
LCD Panel128 x 32/64 Graphic, 2 x 16 Characters
LEDPower / HDD / Bypass
Operation & Certifications
Operating EnvironmentTemperature: 0 - 40°C (32 - 104°F)
Humidity: 20 - 90% RH
Storage EnvironmentTemperature: -10 - 70°C (14 - 158°F)
Humidity: 5 - 95% RH
CertificationCE / FCC / UL / VCCI / RCM / CB / UKCA / IC / JATE / TUV / ML
OS SupportLinux
Models Core/Threads Frequency (Max) Cache TDP
Intel Celeron G49002C/2T3.10GHz2MB54W
Intel Celeron G4900T2C/2T2.90GHz2MB35W
Intel Core i3-81004C/4T3.60GHz6MB65W
Intel Core i3-8100T4C/4T3.10GHz6MB35W
Intel Core i3-9100E4C/4T3.10GHz (3.70GHz)6MB65W
Intel Core i3-9100TE4C/4T2.20GHz (3.20GHz)6MB35W
Intel Core i5-85006C/6T3.00GHz (4.10GHz)9MB65W
Intel Core i5-8500T6C/6T2.10GHz (3.50GHz)9MB35W
Intel Core i5-9500E6C/6T3.00GHz (4.20GHz)9MB65W
Intel Core i5-9500TE6C/6T2.20GHz (3.60GHz)9MB35W
Intel Core i7-87006C/12T3.20GHz (4.60GHz)12MB65W
Intel Core i7-8700T6C/12T2.40GHz (4.00GHz)12MB35W
Intel Pentium Gold G54002C/4T3.70GHz4MB58W
Intel Pentium Gold G5400T2C/4T3.10GHz4MB35W
Models Type Manufacturer Number of Ports
NIP-51040EthernetIntel 82580EB4 x 1GbE RJ45
NIP-51081EthernetIntel 82580EB8 x 1GbE RJ45
NIP-51084EthernetIntel i350 AM48 x 1GbE RJ45
NIP-51243BypassIntel i350-AM44 x 1GbE RJ45
NIP-51481BypassIntel i350-AM48 x 1GbE RJ45
NIP-51482BypassIntel 82580EB8 x 1GbE RJ45
NIP-52021EthernetIntel i350-AM22 x 1GbE SFP
NIP-52040EthernetIntel 82580DB4 x 1GbE SFP
NIP-52041EthernetIntel i350-AM44 x 1GbE SFP
NIP-52080EthernetIntel 82580EB8 x 1GbE SFP
NIP-52083EthernetIntel i350-AM48 x 1GbE SFP
NIP-52120BypassIntel 82580DB2 x 1GbE SFP
NIP-52240BypassIntel 82580EB4 x 1GbE SFP
NIP-53020EthernetIntel 82599ES2 x 10GbE SFP+
NIP-53040EthernetIntel 82599ES4 x 10GbE SFP+
NIP-53120BypassIntel 82599ES2 x 10GbE SFP+
NIP-53240BypassIntel 82599ES4 x 10GbE SFP+
NIP-54021EthernetIntel LX540 BT22 x 10GbE RJ45
NIP-54121BypassIntel X540-BT22 x 10GbE RJ45
NIP-55140BypassIntel NH82580EB2 x 1GbE SFP/2 x 1GbE RJ45
NIP-83020EthernetIntel X710 BM22 x 10GbE SFP+
NIP-83040EthernetIntel Fortville XL710 BM14 x 10GbE SFP+
NIP-83080EthernetIntel Fortville XL710 BM18 x 10GbE SFP+
NIP-83120BypassIntel Fortville XL710 BM22 x 10GbE SFP+
NIP-83240BypassIntel Fortville XL710 BM14 x 10GbE SFP+
NIP-84040EthernetIntel Fortville XL710-BM1+X557-AT44 x 10GbE RJ45
NIP-86020EthernetMellanox Connectx32 x 40GbE QSFP+
NIP-86021EthernetIntel Fortville XL710-BM22 x 40GbE QSFP+
NIP-86120BypassIntel Fortville XL710-BM22 x 40GbE QSFP+
NIP-87020EthernetIntel XXV710-AM22 x 25GbE SFP28
NIP-88010EthernetMellanox ConnectX-42 x 100GbE QSFP28

Order Inquiry

    CAR-2080-C246-1

    1U, 1 x Intel Core i7/i5/i3, Pentium or Celeron, C246 PCH, 2 x DDR4 ECC UDIMMs, 6 x RJ45 GbE, 4 x SFP GbE, 150W Single PSU, 1 x NIP, 1 x STD NIC, Bypass

    CAR-2080-C246-2

    1U, 1 x Intel Core i7/i5/i3, Pentium or Celeron, C246 PCH, 2 x DDR4 ECC UDIMMs, 10 x RJ45 GbE, 150W Single PSU, 1 x NIP, 1 x STD NIC, Bypass

    CAR-2080-H310

    1U, 1 x Intel Core i7/i5/i3, Pentium or Celeron, H310 PCH, 2 x DDR4 UDIMMs, 6 x RJ45 GbE, 150W Single PSU, 1 x NIP, Bypass
