CAR-6010

Intel Purley Platform With Dual Xeon SP, Support Up To 400 GbE

  • 8 x DDR4 ECC 2666MHz RDIMMs
  • Dual Intel Xeon Scalable CPU (Skylake-SP/Cascade Lake-SP)
  • Up to 32 x SFP/RJ45 GbE Ports
  • Integration Acceleration offered with Intel QAT Engine
  • Smart LEDs, N+1 Fans solution, IPMI, System thermal integrate solution
  • Redundant power supply units (CRPS)

CASwell, a leading manufacturer of innovative uCPE/vCPE network systems, is thrilled to reveal the CAR-6010 rackmount appliance with its unique and extremely flexible network configurations providing Ethernet bandwidth of up to 400 Gbit/s.

The CASwell CAR-6010 appliance stands above the competition with its highly scalable network design specially developed by CASwell. The device offers four identical slots for network modules, each one connected by PCI Express 3.0 x16 for maximum bandwidth. That not only gives the customer a myriad of options – from network adapters with eight 1-Gigabit-Ethernet connectors up to modules with just two ports but providing 100-GbE – it also offers to scale from just two or four network ports up to a maximum of 34 Ethernet connections overall. This is made possible by the uniquely designed PCI Express 3.0 configuration because the network modules (NIP) can be either PCIe x8 or PCIe x16 – they fit in the same slot and provide more bandwidth with their PCIe x16 support instead of the common PCIe x8 usage. Equipped with four NIP-88010, each offering 100-GbE, the CASwell CAR-6010 delivers the enormous bandwidth of 400 Gigabit-Ethernet overall.

But the networking configuration is not the only scalable feature of the CAR-6010. This network appliance can currently be equipped with two Intel Xeon Scalable Processors (Skylake-SP) of the Xeon Gold, Silver and Bronze series with up to 20 CPU cores but can also be upgraded to the new “Cascade Lake-SP” generation once available. This gives customers the option to combine their new platform with “Apache Pass” modules, the newest “Intel Optane DC Persistent Memory” based on flash technology for even higher capacities at great value in the system’s DIMM slots that were usually reserved exclusively for DDR4.

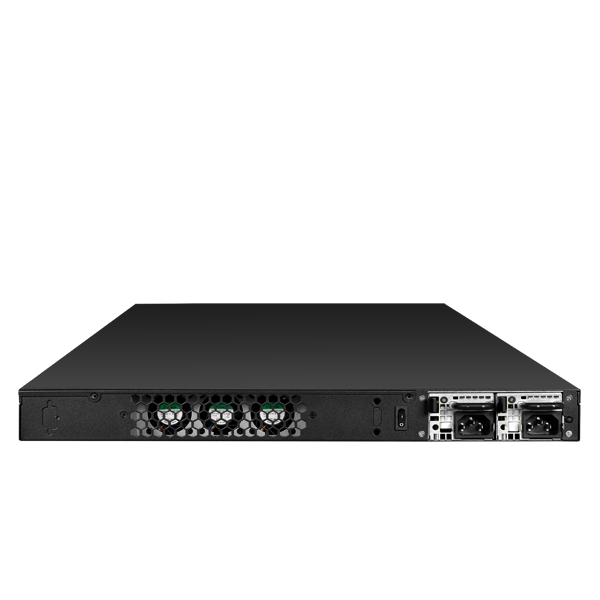

The processors of the CAR-6010 can be combined with up to eight DDR4 RDIMM modules with maximum speeds of 2666 Mhz for an overall main memory of up to 256 GByte. Two common redundant power supply units (CRPS) of 750 watts each provide the appliance with permanent electricity even in case of one failure while also being energy-efficient to save cost when the device is mostly idle. The CAR-6010 also offers the option to be equipped with an LC monitor in the front panel to display status information and system messages for easy maintenance.

Platform
Processor2 x Intel Xeon Scalable Processor (Skylake-SP/Cascade Lake-SP)
ChipsetIntel C627 PCH (Lewisburg)
System Memory8 x DDR4 ECC 2666MHz RDIMMs (Up to 256GB)
Ethernet PortUp to 32 x Ethernet Port(s) with maximum 800GbE bandwidth
BypassBased on CASwell NIC Module or Standard add-on card
ExpansionUp to 4 PCIe Gen3 x 16 for CASwell NIC Module
Storage Device2 x 2.5” SATA/SAS HDDs
1 x M.2 Socket for SSD 2280 (PCIe)
Power Supply750W Redundan PSU
Dimension (WxDxH)438mm x 600mm x 44mm (17.52" x 24" x 1.76")
I/O
Management Console1 x RJ45 System Console Port
2 x RJ45 GbE Port (MGMT)
USB Port2 x USB 3.0 Port(s)
LEDPower / PSU / HDD / Ethernet
Operation & Certifications
Operating EnvironmentTemperature: 0 - 40°C (32 - 104°F)
Humidity: 10 - 90% RH
Storage EnvironmentTemperature: -10 - 70°C (14 - 158°F)
Humidity: 5 - 95% RH
CertificationCE / FCC / RCM / LVD / CB
OS SupportLinux
Models Core/Threads Frequency (Max) Cache TDP
Intel Xeon Gold 511812C/24T2.30GHz (3.20GHz)16.5M105W
Intel Xeon Gold 612612C/24T2.60GHz (3.70GHz)19.25M125W
Intel Xeon Gold 613214C/28T2.60GHz (3.70GHz)19.25M140W
Intel Xeon Gold 613612C/24T3.00GHz (3.70GHz)24.75M150W
Intel Xeon Gold 613820C/40T2.00GHz (3.70GHz)27.5M125W
Intel Xeon Gold 6138T20C/40T2.00GHz (3.70GHz)27.5M125W
Intel Xeon Silver 411410C/20T2.20GHz (3.00GHz)13.75M85W
Intel Xeon Silver 411612C/24T2.10GHz (3.00GHz)16.5M85W
Models Type Manufacturer Number of Ports
NIP-51040EthernetIntel 82580EB4 x 1GbE RJ45
NIP-51081EthernetIntel 82580EB8 x 1GbE RJ45
NIP-51084EthernetIntel i350 AM48 x 1GbE RJ45
NIP-51243BypassIntel i350-AM44 x 1GbE RJ45
NIP-51481BypassIntel i350-AM48 x 1GbE RJ45
NIP-51482BypassIntel 82580EB8 x 1GbE RJ45
NIP-52021EthernetIntel i350-AM22 x 1GbE SFP
NIP-52040EthernetIntel 82580DB4 x 1GbE SFP
NIP-52041EthernetIntel i350-AM44 x 1GbE SFP
NIP-52080EthernetIntel 82580EB8 x 1GbE SFP
NIP-52083EthernetIntel i350-AM48 x 1GbE SFP
NIP-52120BypassIntel 82580DB2 x 1GbE SFP
NIP-52240BypassIntel 82580EB4 x 1GbE SFP
NIP-53020EthernetIntel 82599ES2 x 10GbE SFP+
NIP-53040EthernetIntel 82599ES4 x 10GbE SFP+
NIP-53120BypassIntel 82599ES2 x 10GbE SFP+
NIP-53240BypassIntel 82599ES4 x 10GbE SFP+
NIP-54021EthernetIntel LX540 BT22 x 10GbE RJ45
NIP-54121BypassIntel X540-BT22 x 10GbE RJ45
NIP-55140BypassIntel NH82580EB2 x 1GbE SFP/2 x 1GbE RJ45
NIP-83020EthernetIntel X710 BM22 x 10GbE SFP+
NIP-83040EthernetIntel Fortville XL710 BM14 x 10GbE SFP+
NIP-83080EthernetIntel Fortville XL710 BM18 x 10GbE SFP+
NIP-83120BypassIntel Fortville XL710 BM22 x 10GbE SFP+
NIP-83240BypassIntel Fortville XL710 BM14 x 10GbE SFP+
NIP-84040EthernetIntel Fortville XL710-BM1+X557-AT44 x 10GbE RJ45
NIP-86020EthernetMellanox Connectx32 x 40GbE QSFP+
NIP-86021EthernetIntel Fortville XL710-BM22 x 40GbE QSFP+
NIP-86120BypassIntel Fortville XL710-BM22 x 40GbE QSFP+
NIP-87020EthernetIntel XXV710-AM22 x 25GbE SFP28
NIP-88010EthernetMellanox Connectx32 x 100GbE QSFP28

Order Inquiry

    CAR-6010-1

    1U, 1 x Intel Xeon Scalable, PCH C627, 8 x DDR4 ECC RDIMMs, 2 x RJ45 GbE (MGMT), 750W Redundant PSU, 4 x NIP, 2 x 2.5” HDD

    CAR-6010-2

    1U, 1 x Intel Xeon Scalable, PCH C627, 8 x DDR4 ECC RDIMMs, 1 x RJ45 GbE (MGMT), 1 x RJ45 GbE (BMC), 1 x VGA, 750W Redundant PSU, 4 x NIP, 2 x 2.5” HDD

    CAR-6010-3

    1U, 1 x Intel Xeon Scalable, PCH C627, 8 x DDR4 ECC RDIMMs, 1 x RJ45 GbE (MGMT), 750W Redundant PSU, 4 x NIP, 2 x 2.5” HDD, 1 x EZIO
