N12910SAS

12 Bays 2U Rackmount NAS For Large Business

  • Intel Xeon E3-1245 v5 Quad Core Processor (Skylake)
  • 16GB DDR4 ECC SDRAM, up to 64GB
  • Up to 2 x RJ-45 GbE Ports
  • 12 x SATA/SAS for internal, support SATA II / SATA III
    hard disk
  • Redundant Power Supply 500W
  • ThecusOS 7.0 Support

Thecus® Technology Corp. officially launched their enterprise-class SAS-enabled NAS series, the N12910SAS. These supercharged 12-bay network-attached storage solutions offer massive scalability, trail-blazing speed with uncompromising reliability for optimal data storage performance.

“With the launch of the N12910SAS, Thecus powerfully delivers a storage solution that can expertly cater to business environments that deal with demanding data workloads. Their next generation hardware allows businesses to access their business critical data faster and with greater reliability for optimal data storage performance. ”

The N12910SAS are equipped with the Intel® Skylake Xeon E3-1245 v5 3.5G Hz quad-core Processor, with 16GB (expandable to 64GB) of next generation DDR4 ECC RAM. DDR4 brings even higher performance with migration to higher speed, more robust control features while improving energy economy with reduction in memory power demand.

With native support for SAS drives, users can experience the superior HDD performance of 12G. The units also deploy Daisy Chaining technology which offers connections of up to four additional D16000s, allowing users to reach storage capacities of up to 800TB.

The NAS run on the latest ThecusOS 7.0, providing an optimized, feature-rich platform with an intuitive user interface and easy navigation. Key new features include Photo Station, Thecus App Center and File Center. ThecusOS 7.0 delivers significant advancements in productivity, flexibility, and performance.

The N12910SAS from Thecus® are purposely designed to meet the demanding needs of businesses working with big data. With their accelerated processing power, they provide enterprises with a robust, ultra-fast, highly scalable and reliable storage solution. These industrial-grade rackmount NAS further deliver on Thecus’ ethos of ‘empowering professionals’.

Platform
Processor1 x Intel Xeon E3 v5 Processor (Skylake)
ChipsetIntel C236 PCH (Skylake)
System Memory4 x DDR4 ECC SDRAM (Up to 64GB)
Ethernet Port2 x RJ45 GbE Port(s) on board
Up to 2 x Ethernet Port(s) with maximum 2GbE bandwidth
ExpansionPCI-e x8 (x1)
PCI-e x4 (x1)
PCI-e x1 (x1)
Storage Device12 x SATA/SAS for internal
Support SATA II / SATA III hard disk
Power Supply500W

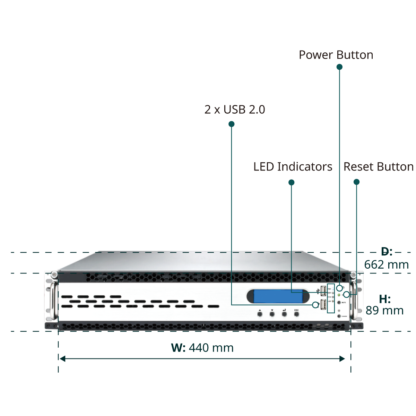

Dimension (WxDxH)440mm x 662mm x 89mm (17.6" x 26.48" x 3.56")
I/O
USB Port4 x USB 3.0 Port(s) 2 x USB 2.0 Port(s)
Display OutputVGA / DVI / Audio(5+1) / SPDIF
LCD PanelDisplays system status and information
LEDPower / HDD / System Busy / System Alert
Operation & Certifications
Operating EnvironmentTemperature: 0 - 40°C (32 - 104°F)
Humidity: 0 - 80% RH
Storage EnvironmentTemperature: -40 - 70°C (-40 - 158°F)
Humidity: 0 - 80% RH
CertificationCE / FCC / VCCI / RCM / BSMI
OS SupportLinux (ThecusOS 7.0)
Models Core/Threads Frequency (Max) Cache TDP
Intel Xeon E3-1245 v54C/8T3.5 GHz (3.9 GHz)8MB80W

Order Inquiry

    N12910SAS

    2U, 1 x Intel Xeon E3-1245 v5, C236 PCH, 4 x DDR4 ECC SDRAMs (2 x 8GB Pre-installed), 2 x RJ45 GbE, 500W Redundant PSU, ThecusOS 7.0
