CAR-5060

Intel Dual Xeon SP Gen.3 High-Performance Multi-Networking Solution

  • 2x Intel Xeon Scalable CPU Gen.3 (Ice Lake)
  • DDR4-3200 ECC Memory (up to 16 RDIMMs & 512 GB)
  • Up to 8x CASwell Proprietary NIN Modules (PCIe 4.0 x8 design)
  • 1x PCIe 4.0 x16 Expansion slot e.g. for FPGA/GPU accelerators
  • 2x PCIe 3.0 M.2 SSD  & 1x SlimSAS U.2 SSD onboard
  • Redundant Power Supply Unit (CRPS, up to 800W)

The CASwell CAR-5060 rackmount appliance is based on two third generation Intel Xeon Scalable Processors (Ice Lake) and a highly configurable network architecture that allows up to 64 high-speed Ethernet ports. It uses the manufacturer’s own designed network configuration with up to eight PCI Express connected, proprietary (NIN) modules that each provides a maximum of eight high-speed Ethernet ports for 64 network connections with up to 100 Gigabit/s depending on configuration. The system can also be equipped with different storage options and FPGA or GPU accelerators for higher performance in networking or artificial intelligence (AI) workloads.
The CAR-5060 is primarily targeted for unified threat management (UTM) but is also highly capable to support large-size data centers, communication or cloud service providers and enterprises with high internal networking workloads.

The CASwell CAR-5060 rackmount appliance is based on two 3rdGen Intel Xeon Scalable Processors that are optimized for cloud, enterprise, AI, HPC, network security and IOT workloads with up to 40 powerful cores and a wide range of frequency and power levels. The 3rd Gen Intel Xeon Scalable processors deliver 1.5x more performance on a range of broadly-deployed network and 5G workloads over the prior generation. Specifically the N SKU processor models are designed to support diverse network environments and are optimized for many workloads and performance levels such as L3 forwarding, 5G UPF, OVS DPDK, VPP FIB router, web server/NGINX, vEPC, vBNG, and vCMTS. They offer higher performance on NFV and networking workloads at lower thermal design power. Built-In AI and crypto acceleration, enhanced security, PCI Express 4.0 support and increased memory options are additional reasons for using Intel’s latest generation of processors.

Versatile and multi-functional

The two 3rd Gen Intel Xeon Scalable processors of the CASwell CAR-5060 can be combined with 16 DIMMs of DDR4-3200 for up to 512GB of ECC main memory. Two M.2 and one U.2 SlimSAS ports are available onboard for fast SSDs. For more storage there’s also a front-accessible, hot-swap-capable 3.5-inch SATA hard drive slot. Further storage options are available through eight front-loading modules. These are typically used for the manufacturer’s own designed network configuration with up to eight PCI Express connected, proprietary (NIN) modules that each provides a maximum of eight high-speed Ethernet ports for 64 network connections overall. But storage modules with either one or two 3.5″ or 2.5″ HDDs or SSDs are also available. Each network or storage module is connected to the processors by PCI Express 4.0 interface introduced with 3rd Gen Intel Xeon Scalable platforms to provide extremely high bandwidth that is basically doubled compared to the previous PCIe 3.0 generation.

The CASwell CAR-5060 also features an internal PCI Express 4.0 x16 slot for a low-profile full-length adapter card. This offers the possibility of adding more Ethernet ports to the system but also can be used for FPGA or GPU acceleration PCIe cards to support emerging machine learning and deep learning workloads with the highest bandwidth and lowest latency.

Furthermore, instead of the networking and storage front modules of the CAR-5060, the PCI Express 4.0 slots can alternatively be used for up to four full-height, full-length and two low-profile PCI Express cards if needed for special purposes and when a limited number of network ports is sufficient.

Conclusion

Especially communication service providers, cloud service providers and enterprises with high internal networking workloads should benefit from using the CAR-5060. Network and security appliance companies can use the CAR-5060 as an upgraded next-generation unified threat management device.

Platform
Processor2 x Intel Xeon Scalable Gen. 3 Processor (Ice Lake)
ChipsetIntel C621A PCH (Lewisburg-R)
System Memory16 x DDR4 ECC 3200MHz DIMMs (Up to 512GB)
Ethernet PortUp to 64 x Ethernet Port(s) with maximum 640GbE bandwidth
BypassBased on CASwell NIC Module or Standard add-on card
ExpansionUp to 8 PCIe Gen4 x 8 for CASwell NIC Modules
Up to 1 PCIe Gen4 x 16 for Standard NIC Module
Storage Device4x SATA 3.0 HDD or SSD
2x PCIe 3.0 M.2 SSD
1x SlimSAS U.2 SSD
Power Supply800W Redundan PSU

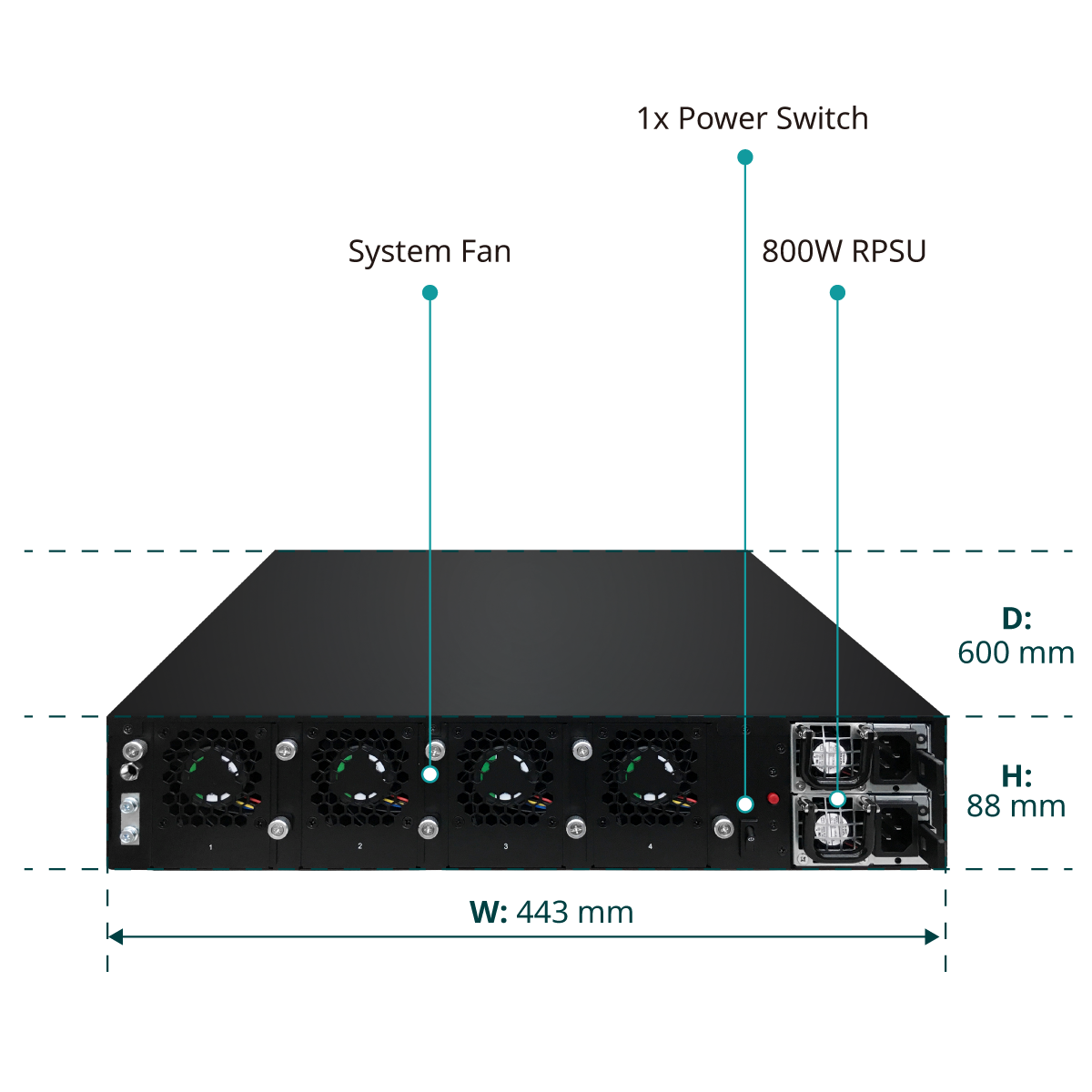

Dimension (WxDxH)443mm x 600mm x 88mm (17.72" x 24" x 3.52")
I/O
Management Console1 x RJ45 System Console Port
1 x RJ45 GbE Port (BMC)
2 x RJ45 GbE Port (x86)
USB Port2 x USB 3.0 Port(s)
Display Output1 x VGA Port (Optional from LOM or VGA module)
LCD Panel128 x 32/64 Graphic, 2 x 16 Characters
LEDPower / PSU / HDD / Ethernet
LOMIPMI 2.0 w/ GbE Speed
Operation & Certifications
Operating EnvironmentTemperature: 0 - 40°C (32 - 104°F)
Humidity: 20 - 90% RH
Storage EnvironmentTemperature: -10 - 70°C (14 - 158°F)
Humidity: 5 - 95% RH
CertificationCE / FCC
OS SupportLinux
Models Core/Threads Frequency (Max) Cache TDP
Intel Xeon Gold 5315Y8C/16T3.20GHz (3.60GHz)12M140W
Intel Xeon Gold 531712C/24T3.00GHz (3.60GHz)18M150W
Intel Xeon Gold 5318N24C/48T2.10GHz (3.40GHz)36M150W
Intel Xeon Gold 5318Y24C/48T2.10GHz (3.40GHz)36M165W
Intel Xeon Gold 5320T20C/40T2.30GHz (3.50GHz)30M150W
Intel Xeon Gold 6312U24C/48T2.40GHz (3.60GHz)36M185W
Intel Xeon Gold 6314U32C/64T2.3GHz (3.4GHz)48M205W
Intel Xeon Gold 632616C/32T2.90GHz (3.50GHz)24M185W
Intel Xeon Gold 633028C/56T2.00GHz (3.10GHz)42M205W
Intel Xeon Gold 6330N28C/56T2.2GHz (3.4GHz)42M165W
Intel Xeon Gold 6336Y24C/48T2.40GHz (3.60GHz)36M185W
Intel Xeon Gold 6338N32C/64T2.2GHz (3.5GHz)48M185W
Intel Xeon Gold 6338T24C/48T2.10GHz (3.40GHz)36M165W
Intel Xeon Platinum 8351N36C/72T2.40GHz (3.50GHz)54M225W
Intel Xeon Silver 431012C/24T2.10GHz (3.30GHz)18M120W
Intel Xeon Silver 4310T10C/20T2.30GHz (3.40GHz)15M105W
Intel Xeon Silver 431416C/32T2.40GHz (3.40GHz)24M135W
Intel Xeon Silver 431620C/40T2.30GHz (3.40GHz)30M150W
Models Type Manufacturer Number of Ports
NIP-51040EthernetIntel 82580EB4 x 1GbE RJ45
NIP-51081EthernetIntel 82580EB8 x 1GbE RJ45
NIP-51084EthernetIntel i350 AM48 x 1GbE RJ45
NIP-51243BypassIntel i350-AM44 x 1GbE RJ45
NIP-51481BypassIntel i350-AM48 x 1GbE RJ45
NIP-51482BypassIntel 82580EB8 x 1GbE RJ45
NIP-52021EthernetIntel i350-AM22 x 1GbE SFP
NIP-52040EthernetIntel 82580DB4 x 1GbE SFP
NIP-52041EthernetIntel i350-AM44 x 1GbE SFP
NIP-52080EthernetIntel 82580EB8 x 1GbE SFP
NIP-52083EthernetIntel i350-AM48 x 1GbE SFP
NIP-52120BypassIntel 82580DB2 x 1GbE SFP
NIP-52240BypassIntel 82580EB4 x 1GbE SFP
NIP-53020EthernetIntel 82599ES2 x 10GbE SFP+
NIP-53040EthernetIntel 82599ES4 x 10GbE SFP+
NIP-53120BypassIntel 82599ES2 x 10GbE SFP+
NIP-53240BypassIntel 82599ES4 x 10GbE SFP+
NIP-54021EthernetIntel LX540 BT22 x 10GbE RJ45
NIP-54121BypassIntel X540-BT22 x 10GbE RJ45
NIP-55140BypassIntel NH82580EB2 x 1GbE SFP/2 x 1GbE RJ45
NIP-83020EthernetIntel X710 BM22 x 10GbE SFP+
NIP-83040EthernetIntel Fortville XL710 BM14 x 10GbE SFP+
NIP-83080EthernetIntel Fortville XL710 BM18 x 10GbE SFP+
NIP-83120BypassIntel Fortville XL710 BM22 x 10GbE SFP+
NIP-83240BypassIntel Fortville XL710 BM14 x 10GbE SFP+
NIP-84040EthernetIntel Fortville XL710-BM1+X557-AT44 x 10GbE RJ45
NIP-86020EthernetMellanox Connectx32 x 40GbE QSFP+
NIP-86021EthernetIntel Fortville XL710-BM22 x 40GbE QSFP+
NIP-86120BypassIntel Fortville XL710-BM22 x 40GbE QSFP+
NIP-87020EthernetIntel XXV710-AM22 x 25GbE SFP28
NIP-88010EthernetMellanox Connectx32 x 100GbE QSFP28

Order Inquiry

    CAR-5060-1

    2U, 2 x Intel Xeon Scalable Gen.3, PCH C621A, 16 x DDR4 ECC DIMMs, 800W Redundant PSU, 8 x NIP, 2 x 3.5”/2.5” HDD

    CAR-5060-2

    2U, 2 x Intel Xeon Scalable Gen.3, PCH C621A, 16 x DDR4 ECC DIMMs, 800W Redundant PSU, 4 x NIP, 4 x 3.5”/2.5” HDD, 1 x EZIO

    CAR-5060-3

    2U, 2 x Intel Xeon Scalable Gen.3, PCH C621A, 16 x DDR4 ECC DIMMs, 800W Redundant PSU, 8 x NIP, 1 x 3.5”/2.5” HDD, 1 x EZIO

    CAR-5060-4

    2U, 2 x Intel Xeon Scalable Gen.3, PCH C621A, 16 x DDR4 ECC DIMMs, 800W Redundant PSU, 8 x NIP, 2 x 2.5” HDD/SSD

    CAR-5060-5

    2U, 2 x Intel Xeon Scalable Gen.3, PCH C621A, 16 x DDR4 ECC DIMMs, 800W Redundant PSU, 6 x NIP, 4 x 2.5” HDD/SSD, 1 x EZIO

    CAR-5060-6

    2U, 2 x Intel Xeon Scalable Gen.3, PCH C621A, 16 x DDR4 ECC DIMMs, 800W Redundant PSU, 4 x NIP, 2 x 2.5” HDD/SSD, 6 x STD NIC

    CAR-5060-7

    2U, 2 x Intel Xeon Scalable Gen.3, PCH C621A, 16 x DDR4 ECC DIMMs, 800W Redundant PSU, 4 x NIP, 2 x 2.5” HDD/SSD, 1 x STD NIC

    CAR-5060-8

    2U, 2 x Intel Xeon Scalable Gen.3, PCH C621A, 16 x DDR4 ECC DIMMs, 800W Redundant PSU, 2 x NIP, 3 x 3.5” HDD, 4 x STD NIC, 1 x EZIO
