| Platform | |
| Form Factor | CASwell NIC Module |
| LAN Controller | 1 x Intel E830-CCAM1 |
| Ethernet Port | 2 x QSFP28 100 GbE Port(s) on board Up to 2 x Ethernet Port(s) with maximum 200GbE bandwidth |
| Bus Type | Proprietary PCIe Gen5 x8 |
| Dimension (WxDxH) | 75mm x 194mm x 16mm (3" x 7.76" x 0.64") |
| Operation & Certifications | |
| Operating Environment | Temperature: 0 - 40°C (32 - 104°F) Humidity: 10 - 90% RH |
| Storage Environment | Temperature: -20 - 75°C (-4 - 167°F) Humidity: 5 - 95% RH |
| OS Support | Linux / Windows |

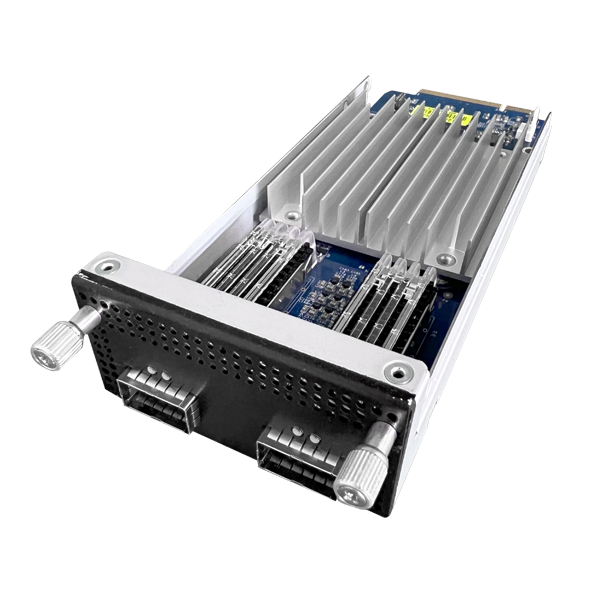

NIN-A8020
Dual Ports QSFP28 Fiber Ethernet PCI-E and Network Adapter100 GbE Proprietary Adapters
- Intel E830-CCAM1 LAN Controller
- 2 x QSFP28 100 GbE Ports
- Proprietary PCIe Gen5 x8
