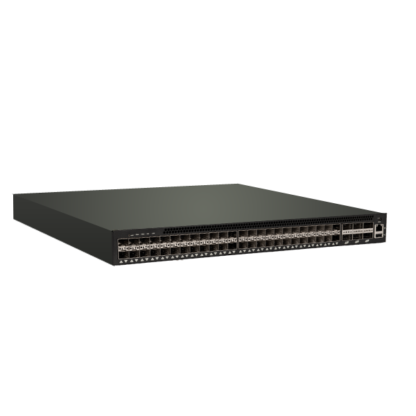

N100-2648

Broadcon Tomahawk with Intel Rangeley. High density 100G ToR Switch.

  • Intel Rangeley C2558 2.4G 4 Cores
  • Broadcom Tomahawk
  • Redundant/Hot-Swappable PSU/FAN Design
  • 6 x QSFP28 100GbE + 48 x SFP28 25GbE Ports
  • 3.6Tbps Switch Capability
  • 16MB Packet Buffer Memory
Platform
Processor1 x Intel Atom C Processor (Rangeley)
System Memory2 x DDR3 ECC SO-DIMM (Up to 16GB)
Ethernet Port48 x SFP28 25 GbE Port(s) on board
6 x QSFP28 100 GbE Port(s) on board
Up to 54 x Ethernet Port(s) with maximum 1800GbE bandwidth
Storage Device64GB SSD
SFP+/QSFP+ OptionsSR4, LR4, CR4, SR, LR, CR
Switching ChipsetBroadcom Tomahawk
Switch Capability3.6Tbps
Packet Buffer Memory16MB
Latency<0.5 microsecond
Power Supply550W Redundan PSU
Dimension (WxDxH)440mm x 406mm x 44mm (17.6" x 16.24" x 1.76")
I/O
Management Console1 x RJ45 GbE Console Port
1 x 1G Out-of-band Management Port
USB Port1 x USB 2.0 Port(s)
LEDPower / System Status / PSU / Fan
Operation & Certifications
Operating EnvironmentTemperature: 0 - 45°C (32 - 113°F)
Humidity: 20 - 90% RH
Storage EnvironmentTemperature: 0 - 45°C (32 - 113°F)
Humidity: 20 - 90% RH
Certification / CCC
Models Core/Threads Frequency (Max) Cache TDP
Intel Atom C25584C/4T2.40 GHz2MB15W
