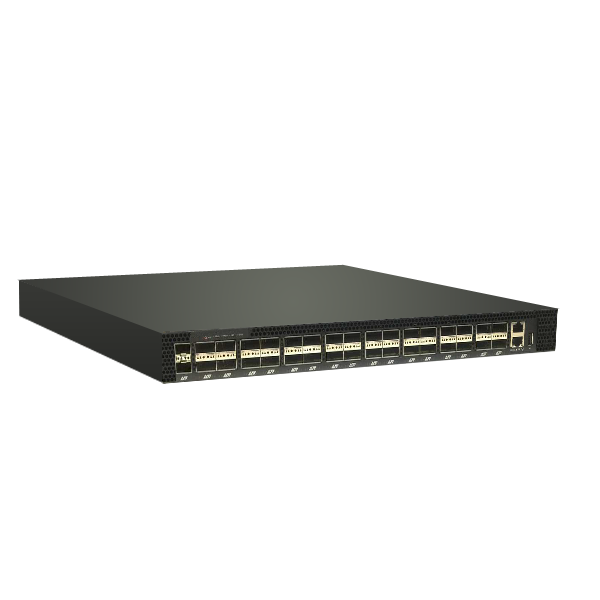

Barefoot Tofino Chip with Intel Broadwell-DE. High-density 100G ToR Switch.

  • Intel Broadwell-DE D-1527 4 Cores
  • Barefoot Tofino DFN-T10-032D
  • Redundant/Hot-Swappable PSU/FAN Design
  • 32 x QSFP28 100GbE + 2 x SFP+ 10GbE Ports
  • 6.44Tbps Switch Capability & 20MB Packet Buffer Memory
  • Programmable Switch
Processor1 x Intel Xeon D Processor (Broadwell)
System Memory1 x DDR4 ECC SO-DIMM (Up to 8GB)
Ethernet Port2 x SFP+ 10GbE Port(s) on board
32 x QSFP28 100GbE Port(s) on board
Up to 34 x Ethernet Port(s) with maximum 3220GbE bandwidth
Storage Device64GB SSD
SFP+/QSFP+ OptionsSR4, LR4, CR4
Switching ChipsetBarefoot Tofino DFN-T10-032D
Switch Capability6.44Tbps
Packet Buffer Memory20MB
Latency<0.4 microsecond
Power Supply550W Redundan PSU
Dimension (WxDxH)440mm x 428mm x 44mm (17.6" x 17.12" x 1.76")
Management Console1 x RJ45 GbE Console Port
1 x 1G Out-of-band Management Port
USB Port1 x USB 2.0 Port(s)
Operation & Certifications
Operating EnvironmentTemperature: 0 - 45°C (32 - 113°F)
Humidity: 20 - 90% RH
Storage EnvironmentTemperature: 0 - 45°C (32 - 113°F)
Humidity: 20 - 90% RH
CertificationCE / FCC / CCC
Models Core/Threads Frequency (Max) Cache TDP
Intel Xeon D-15274C/8T2.20GHz (2.70GHz)6MB35W
