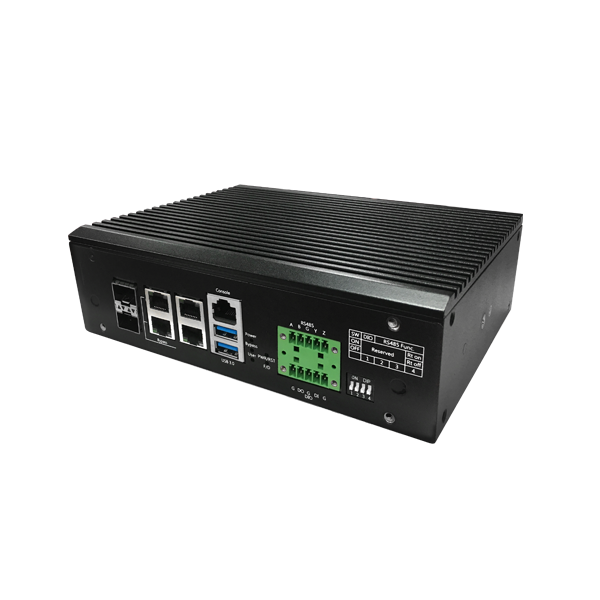

Intel Atom Apollo Lake-I Platform, Wide Temperature And Fanless Network Appliance

  • Intel Atom SoC E3900 series (Apollo Lake-I)
  • 1 x DDR3L 1600MHz SODIMMs
  • 4 x RJ45 GbE Ports, 2 x SFP GbE Ports
  • Wifi Support (mPCIe Socket)
  • 1 x SATADOM, 1 x M.2 SSD(2242,SATAIII), 1 x SD3.0
  • Wide-temperature Support (-40~85C)

CASwell recently made the new CAW-0110 desktop network appliance available for ordering and project-based customization. The ruggized industrial-grade device based on the energy-efficient Intel Atom Apollo Lake-I platform manufactured in proven 14 nm technology comes with fanless design for quiet operation and provides wired and wireless networking in either very low or very high temperatures.

The CASwell CAW-0110 provides four Gigabit-Ethernet ports and two PCI Express linked SFP ports for hot-pluggable network connections of up to 5 Gbit/s. A pair of Bypass switches ensures that the network keeps running even during maintenance or in case of power outages. Optional WiFi 802.11n/ac functionality is also supported. The Intel Atom x7-E3950 quad-core processor with up to 2 Ghz combined with 4 or 8 GByte of DDR3L SO-DIMM main memory (1600 or 1866 Mhz) guarantees high performance for every networking requirement.

For projects with energy restrictions the CAW-0110 can also be equipped with an Intel Atom x5-E3940 or x5-E3930 dual-core CPU with TDPs of only 9.5 or 6.5 Watts respectively.

The CASwell CAW-0110 is compliant with the IEC 61850-3 and IEEE 1613 industry standards for electronic networking devices to be safely used even in electric power stations and can operate at temperatures as low as -40°C and as high as 70°C.

Processor1 x Intel Atom X Processor (Apollo Lake-I)
System Memory1 x DDR3L 1600MHz SODIMMs (Up to 8GB)
Ethernet Port4 x RJ45 GbE Port(s) on board
2 x SFP GbE Port(s) on board
Up to 6 x Ethernet Port(s) with maximum 6GbE bandwidth
Bypass1 segment(s) on board
Storage Device1 x SATA DOM
1 x M.2 Socket for SSD 2242 (SATAIII)
1 x SD 3.0
Power SupplyDC 12-48V Dual Input
Dimension (WxDxH)200mm x 164mm x 54.5mm (8" x 6.56" x 2.18")
Management Console1 x RJ45 System Console Port
USB Port2 x USB 3.0 Port(s)
LEDPower / Bypass
Operation & Certifications
Operating EnvironmentTemperature: -40 - 70°C (-40 - 158°F)
Humidity: 20 - 90% RH
Storage EnvironmentTemperature: -40 - 85°C (-40 - 185°F)
Humidity: 5 - 95% RH
CertificationCE / FCC / SGS / CB / ASNZS / IC / EN 50121 / EN 61850 / IEEE1613
OS SupportLinux / Windows
Models Core/Threads Frequency (Max) Cache TDP
Intel Atom x5-E39302C/2T1.3GHz (1.8GHz)2MB6.5W
Intel Atom x5-E39404C/4T1.6GHz (1.8GHz)2MB9.5W
Intel Atom x7-E39504C/4T1.6GHz (2.0GHz)2MB12W

Order Inquiry


    Fanless Desktop, 1 x Intel Atom X, 1 x DDR3L SO-DIMMs, 4 x RJ45 GbE, 2 x SFP GbE, 1 x SATA DOM, 1 x M.2 SSD, 1 x SD 3.0, DC 12-48V Dual Input
