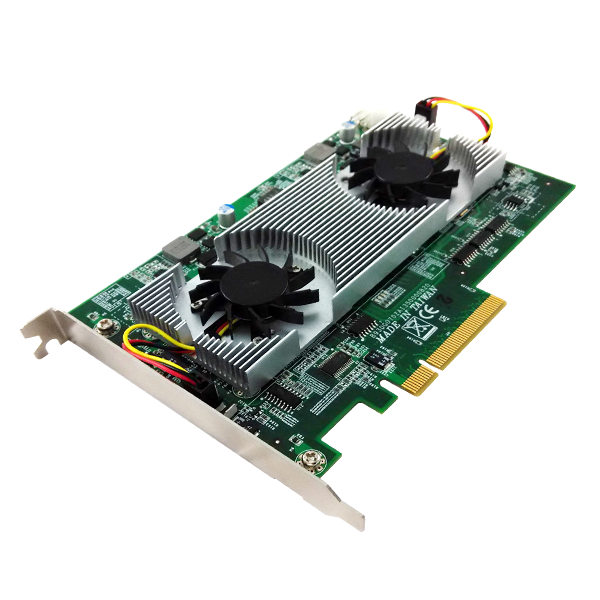

NPC-5000A

Crypto And Compression Acceleration Card

  • Intel 8950CL LAN Controller
  • 8 x Standard PCIe Gen2
  • Intel QuickAssist Accelerator
  • HW Accelerator Crypto Compression
  • Support PCI Express Base Specification 2.0 (5 GTs)
Platform
Form FactorStandard NIC Module
LAN Controller1 x Intel 8950CL
Bus Type8 x Standard PCIe Gen2
ComplianceSR-IOV Capable
Virtual Machine Device Queues (VMDq)
IEEE 802.3x and 802.3z flow control supported
Hardware acceleration for TCP-IP and iSCSI
Dimension (WxDxH)69mm x 150mm x 18mm (2.76" x 6" x 0.72")
Operation & Certifications
Operating EnvironmentTemperature: 0 - 55°C (32 - 131°F)
Humidity: 20 - 90% RH
Storage EnvironmentTemperature: -10 - 70°C (14 - 158°F)
Humidity: 5 - 95% RH
CertificationCE / FCC
OS SupportLinux
